Base Model

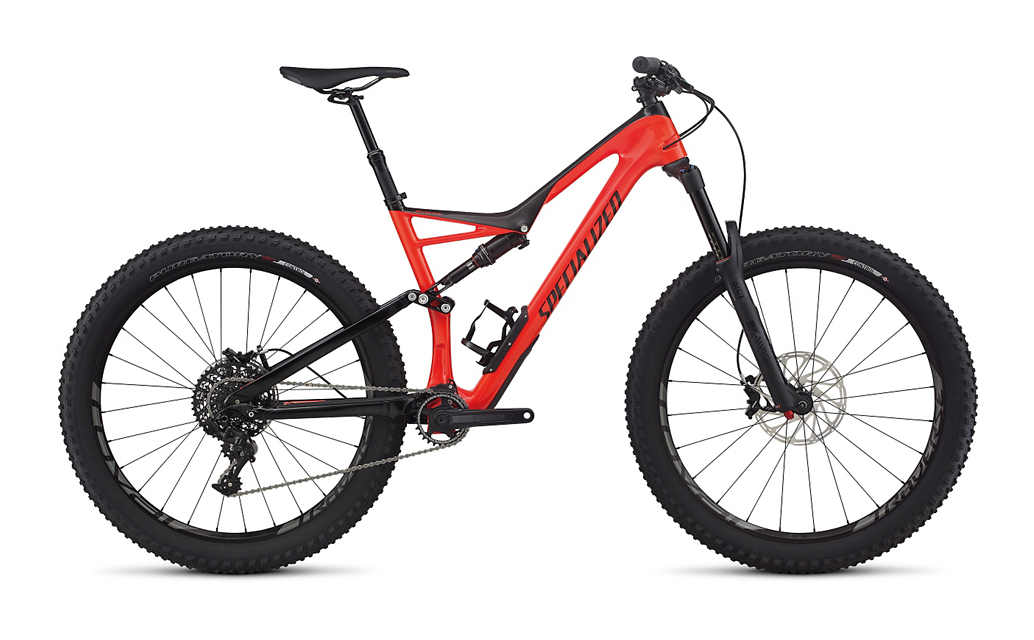

2017 Specialized Stumpjumper Expert Carbon 6Fattie
Part No. 93317-3404 at the
Specialized Bike Archive.
Frameset
| Size |
Large |
| Material |
Carbon (FACT 9m) front triangle, Alloy (M5) rear end |
| Color |
Gloss Rocket Red / Black |
| Headset |
-- |
| Bottom Bracket |
-- |
| Rear Axle |
-- |
| Seat Tube |
?? mm |
| Seat Collar |
?? mm |
Components
| Saddle |
____ |
| Pedals |
Crankbrothers Candy 7, black |
Suspension Setup
| |
Fork |
Shock |
| Travel |
150 mm |
135 mm |
| Tokens |
2 |
?? |
| Air Pressure |
-- PSI |
-- PSI |
| Sag |
-% |
-% |
29" Wheelset
| |
Front |
Rear |
| Wheel |
Hope Tech Enduro 29er - Pro 4. 6061 T6 aluminium rim, 23mm internal / 28mm external. 32 hole Pro 4 hub: 110x15mm Boost Thru Axle, 6-bolt disc mount |
Hope Tech Enduro 29er - Pro 4. 6061 T6 aluminium rim, 23mm internal / 28mm external. 32 holes Pro 4 hub: 148x12mm Boost Thru-Axle, Shimano Hub Body, 44t ratchet w/ 4 pawl engagement, 6-bolt disc mount |
| Tire |
Maxxis Minion DHF, 29x2.30, 120TPI, 3C MaxxTerra compound, EXO casing, TubelessReady |
Maxxis Aggressor, 29x2.30, 2x120TPI, Dual compound, DoubleDown casing, TubelessReady |
| Rotor |
Shimano -- Ice Tech -- 203mm |
Shimano -- Ice Tech -- 180mm |
| Cassette |
|
Shimano XT 11sp 11-42 |
| |
Front |
Rear |
| Pressure |
22 PSI, Tubeless |
25 PSI, Tubeless |
| |
Front |
Rear |
| Pressure |
25 PSI |
28 PSI |
